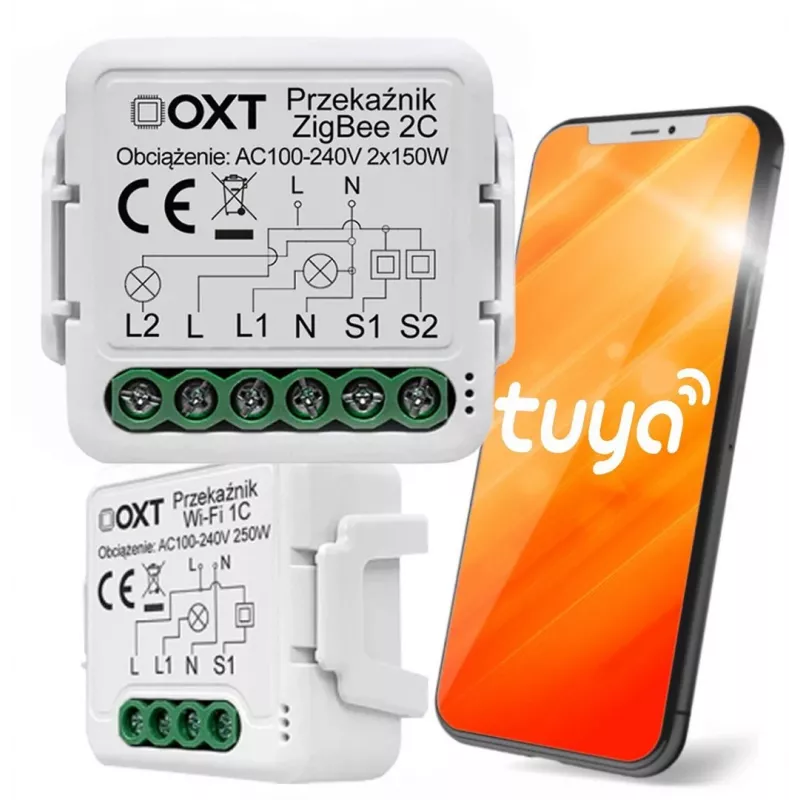

Module interrupteur intelligent ZigBee Tuya mini OXT 2 canaux

The OXT Mini 2-Channel ZigBee Tuya Smart Switch Module is a compact, flush-mount relay module designed for in-wall installation. It enables remote control, scheduling, and automation of two independent lighting or appliance circuits via the Tuya Smart or Smart Life app. Compatible with Amazon Alexa and Google Assistant when paired with a Tuya ZigBee gateway, this module brings modern smart home functionality to existing wiring.

Advantages

Compact size fits standard in-wall switch boxes; supports two independent channels for separate control; works with popular voice assistants; low standby power consumption; fire-retardant housing for safety.

Suitable for

• Retrofitting existing wall switches with smart control
• Automating lighting and small appliances in residential or commercial spaces
• Integrating with Tuya-based smart home systems

Key specifications

• Connectivity: ZigBee 3.0 (IEEE 802.15.4)
• Control Platform: Tuya Smart / Smart Life App
• Channels: 2 independent circuits
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load per Channel: 5A
• Max Total Load: 10A
• Requires Neutral Wire: Yes
• Installation: Flush-mount (in-wall switch box)
• Operating Temperature: -10°C to 40°C
• Housing Material: PC V0 Fire-retardant
• Certifications: CE, RoHS

Recommendations

Requires a Tuya ZigBee gateway (sold separately) for remote access and voice control. Ensure neutral wire is present at the switch box before installation.
