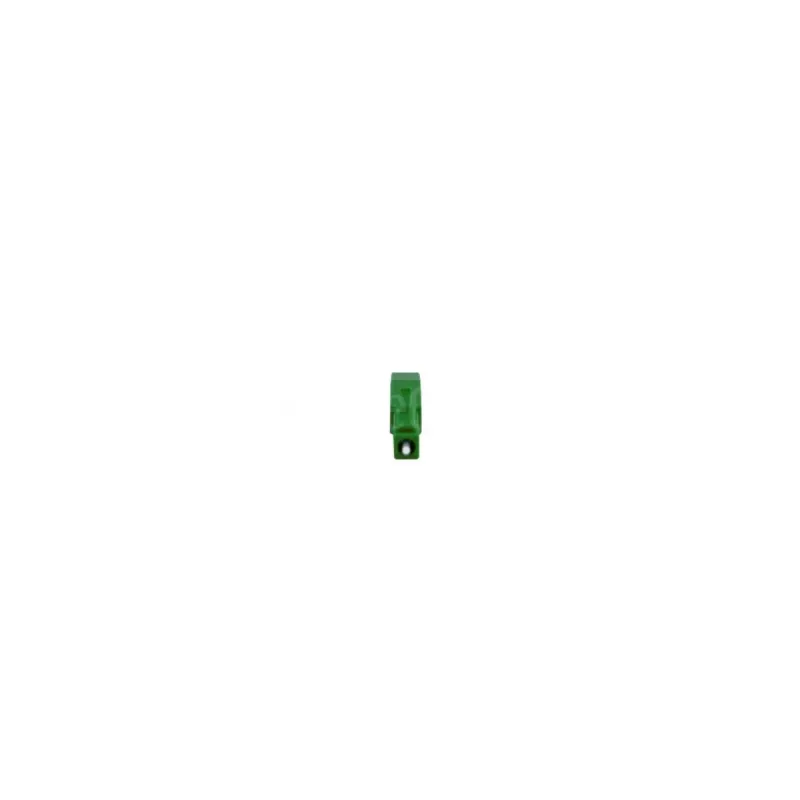

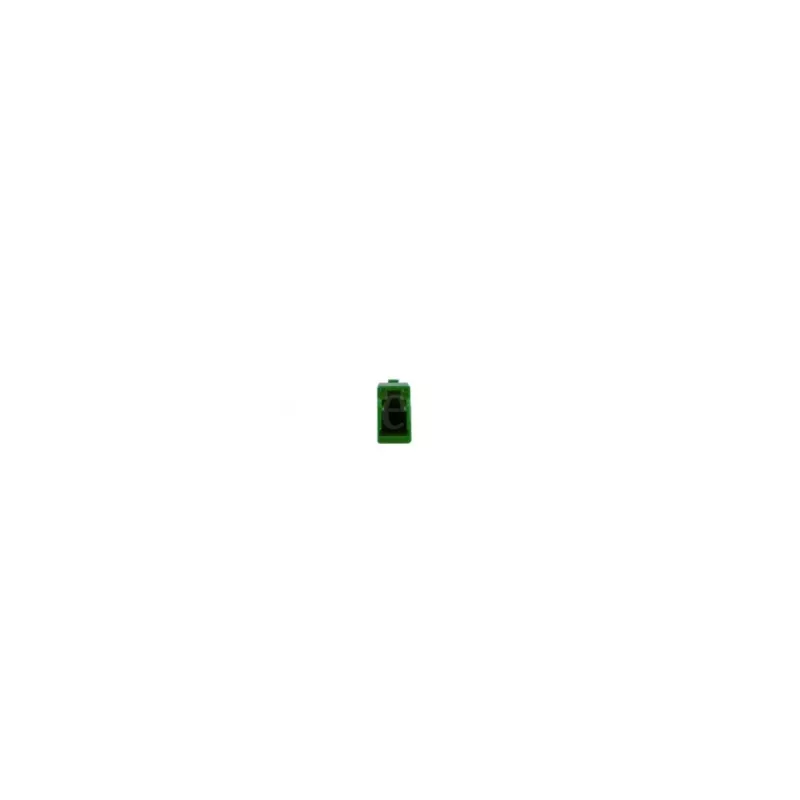

Atténuateur BlueOptics monomode LC/APC simplex 14 dB

The BlueOptics SFA21BM14 is a high-quality singlemode fiber optic attenuator designed to reduce optical power in fiber optic networks. With an attenuation value of 14 dB, it ensures optimal signal levels for sensitive receivers. The LC/APC connector configuration provides low back reflection, making it ideal for high-performance applications.

Advantages

This attenuator offers precise attenuation with a tolerance of ±0.5 dB, ensuring reliable performance. The APC polish minimizes return loss, enhancing signal integrity. Durable metal/plastic composite housing and zirconia ceramic ferrule guarantee long-term stability and over 1000 mating cycles.

Suitable for

• Singlemode fiber optic networks (G.652.D, G.657.A1/A2)
• Telecommunications and data centers
• FTTx and CATV systems
• Test and measurement equipment

Key specifications

• Attenuation: 14 dB (±0.5 dB)
• Fiber mode: Singlemode
• Connector: LC/APC Simplex
• Wavelength range: 1260-1650 nm
• Return loss (APC): ≥ 60 dB
• Insertion loss (excl. attenuation): ≤ 0.2 dB
• PDL: ≤ 0.2 dB
• Max optical power: 200 mW
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Durability: > 1000 mating cycles
• Housing material: Metal/Plastic composite
• Ferrule material: Zirconia ceramic
• Compliance: RoHS, REACH, IEC 61754-20

Recommendations

For optimal performance, use with high-quality singlemode patch cables and ensure clean connector ends. This attenuator is ideal for reducing signal power in high-power applications or when matching receiver sensitivity.
