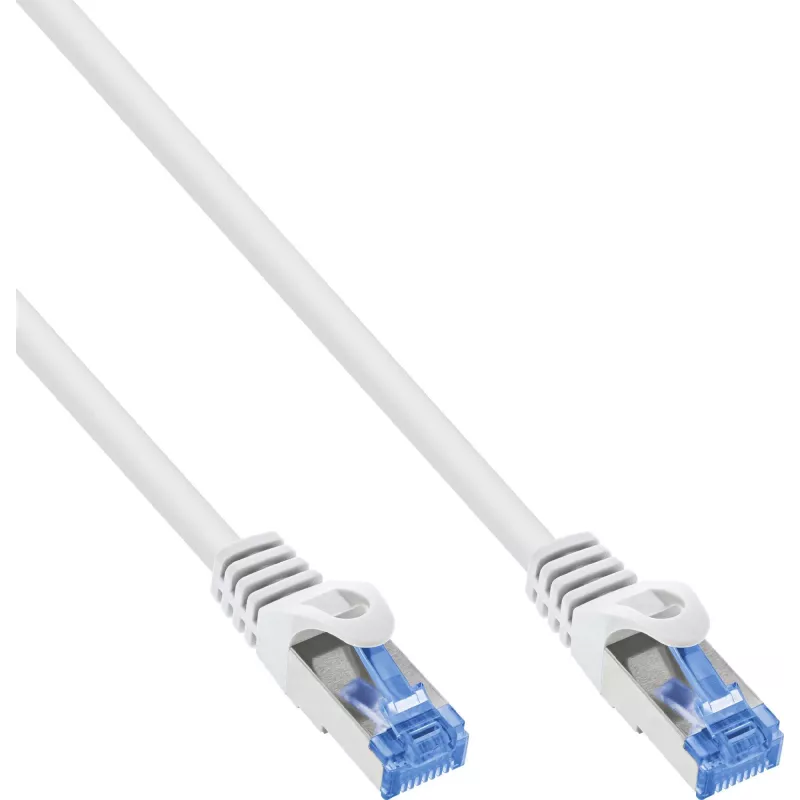

Câble patch INLINE B-72601W Cat.6A S/FTP LSZH, CCA, blanc, 1m, lot de 80

Network downtime from cheap, poorly shielded cables can cripple a growing office. This 80-piece bulk pack of INLINE Cat.6A S/FTP patch cables solves that by delivering reliable 10-Gigabit links in a clean white LSZH jacket, ready for high-density patching.

Who is it for

IT installers, system integrators, and facility managers who need a cost-effective, fire-safe cabling solution for data centers, office floors, or industrial control cabinets. The CCA conductor keeps the price low while the S/FTP shielding maintains signal integrity over short 1-meter runs.

Main features

• Cat.6A performance up to 500 MHz and 10GBASE-T Ethernet.
• S/FTP shielding: each pair is foil-wrapped (PiMF) plus an overall braided shield for superior EMI/RFI rejection.
• CCA (copper-clad aluminum) stranded conductors, AWG 26/7 – flexible and economical.
• LSZH (low-smoke zero-halogen) white jacket meets IEC 60332-1 flame retardancy.
• Gold-plated RJ45 connectors (50µ") with molded strain relief boots.
• Wired to TIA/EIA 568B, backward compatible with Cat.6, Cat.5e, Cat.5.
• Supports PoE, PoE+, and PoE++ for powering devices over the same cable.
• Bulk pack of 80 cables – ideal for large installations or as a reseller stock item.

Specifications

• Length: 1 m per cable
• Colour: White
• Shielding: S/FTP (PiMF + overall braid)
• Conductor: CCA, AWG 26/7 stranded
• Jacket: LSZH, outer diameter approx. 6.2 mm
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Bandwidth: 500 MHz
• Data rate: up to 10 Gbps
• Wiring: TIA/EIA 568B
• Flammability: IEC 60332-1
• Certifications: RoHS, CE

Tips

For permanent links longer than 10 meters, consider solid copper conductors to reduce attenuation. Store unused cables in a dry, cool place to preserve jacket flexibility. When bundling, avoid over-tightening cable ties to prevent deformation of the outer shield.
