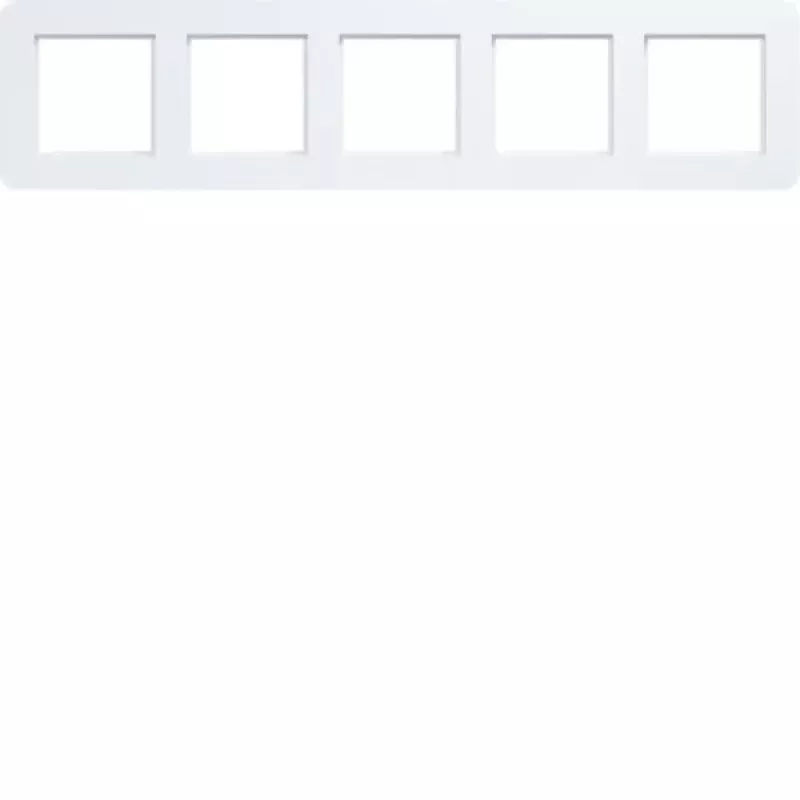

Cadre 5 postes HAGER WAD9500WM C.8 blanc clair mat

Electricians and installers use the HAGER WAD9500WM frame to complete a 5-gang switch or socket combination in residential and commercial flush-mounted installations. The frame belongs to the Hager C.8 design line and has a light white matt finish.

Key specifications

• Number of gangs: 5
• Colour: Light white matt
• Material: Thermoplastic
• Mounting type: Flush-mounted
• Design line: Hager C.8
• Surface finish: Matt
• Halogen-free: Yes
• IP protection class: IP20
• Orientation: Horizontal
• Number of horizontal units: 5
• Number of vertical units: 1
• Approximate RAL colour: RAL 9010 (Pure White)
• Impact resistance: IK05
• UV resistance: Yes
• Operating temperature range: -5 to +45 °C

Why choose it

The frame is made of halogen-free thermoplastic and has a matt surface that resists fingerprints and scratches. It matches other components in the C.8 range for a consistent look.

Ideal use cases

• Combining five switches or sockets in a single horizontal row
• Flush-mounted installations in homes, offices, and public buildings
• Projects requiring a pure white colour (RAL 9010) with a matt finish

Good to know

The frame is suitable for switch and socket inserts. It has an IK05 impact resistance rating and is UV resistant, making it suitable for areas exposed to sunlight.
