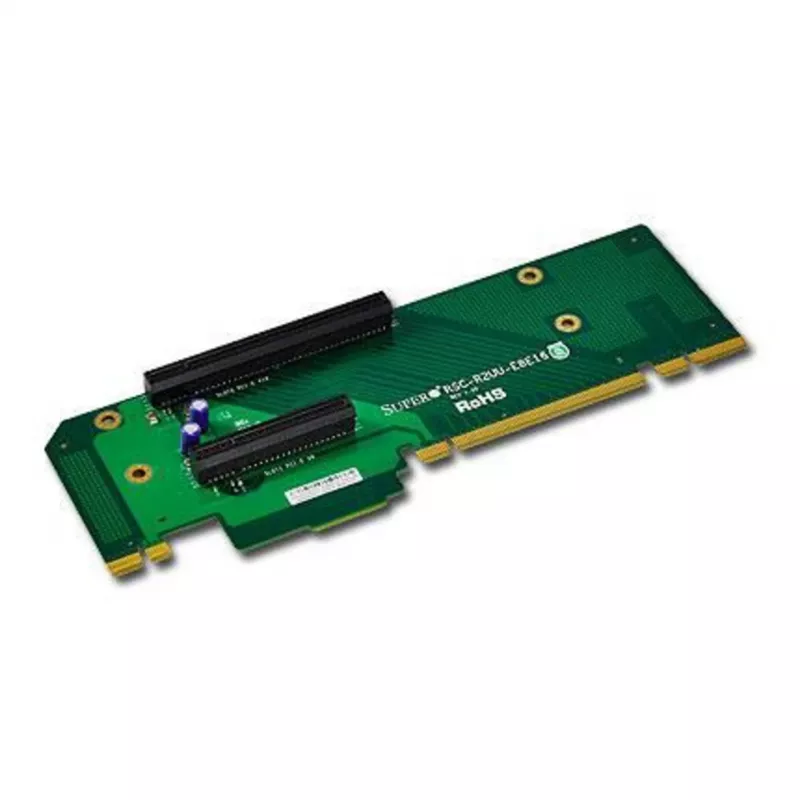

Carte riser Supermicro RSC-R2UU-E8E16 - 2U, PCIe 3.0, 2 emplacements (1x x16, 1x x8)

The Supermicro RSC-R2UU-E8E16 is a high-quality riser card designed for Supermicro 2U server chassis. It enables expansion by adding two PCI Express 3.0 slots, supporting one x16 and one x8 electrical configuration with x16 mechanical slots. This riser card is ideal for upgrading server capabilities with additional network cards, storage controllers, or other PCIe devices.

Advantages

Reliable expansion solution for Supermicro servers; supports PCIe 3.0 for high-speed data transfer; easy installation with screw-in mounting; passive design draws power from the motherboard.

Suitable for

• Supermicro 2U server chassis
• Supermicro X9, X10, X11 series motherboards with compatible riser slot
• Adding PCIe expansion cards such as network adapters, RAID controllers, or GPUs

Key specifications

• Form Factor: 2U
• PCI Express Generation: PCIe 3.0
• Number of PCIe Slots: 2
• Slot 1 Type: PCI-E 3.0 x16 (mechanical x16)
• Slot 2 Type: PCI-E 3.0 x8 (mechanical x16)
• Orientation: Horizontal / Right-angle
• Motherboard Connector: Proprietary Supermicro Riser Slot
• Data Transfer Rate: Up to 8 GT/s per lane
• Power Requirement: Passive (from motherboard)
• Mounting Type: Screw-in
• RoHS Compliant: Yes

Recommendations

Ensure your motherboard and chassis are compatible with this riser card. For optimal performance, use PCIe 3.0 compatible expansion cards.
