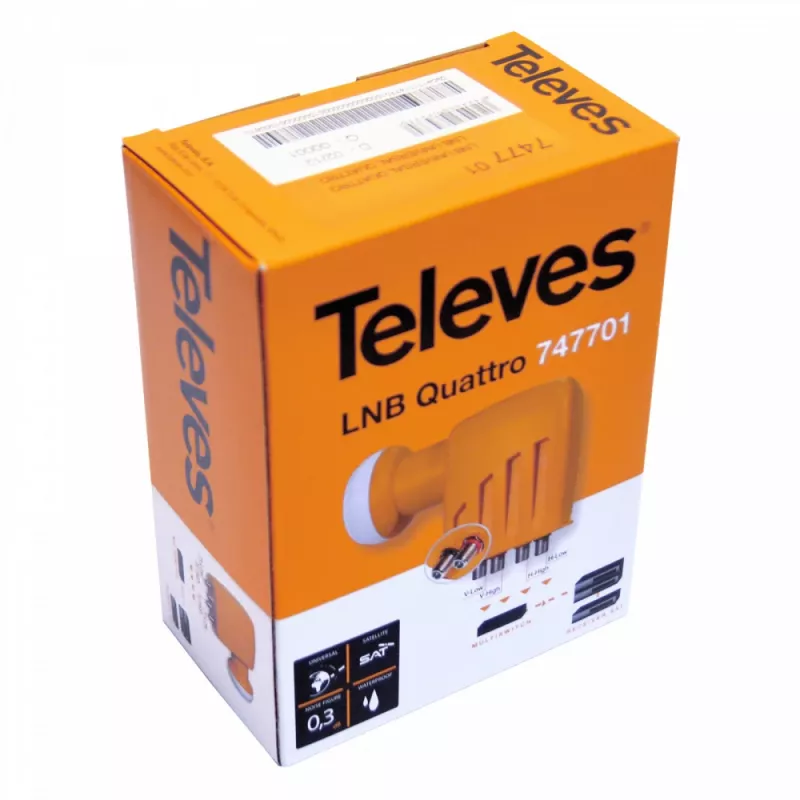

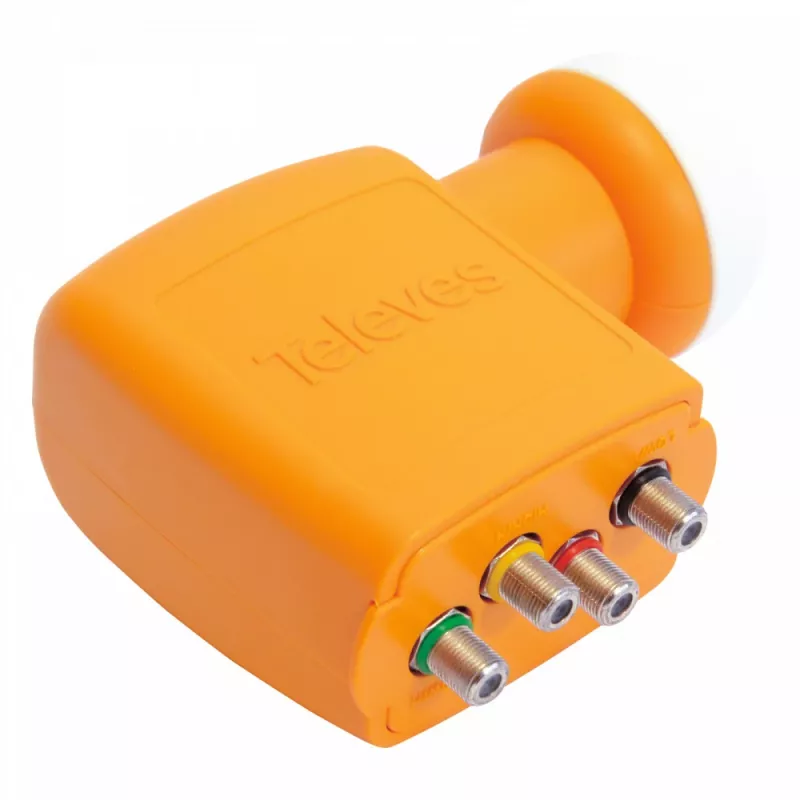

LNB Quattro TELEVES 747701

The TELEVES 747701 is a high-performance Quattro LNB designed for professional satellite reception systems. It converts satellite signals into four separate outputs for vertical high, vertical low, horizontal high, and horizontal low bands, enabling connection to a multiswitch for distribution to multiple receivers.

Advantages

Ultra-low noise figure of 0.1 dB ensures excellent signal quality even in weak signal areas. Robust weather protection with retractable cover for F-connectors prolongs lifespan. Compatible with standard 40 mm feedhorn for easy installation.

Suitable for

• Satellite TV distribution systems using a multiswitch
• Single cable runs to multiple receivers
• Professional and residential installations requiring high signal integrity

Key specifications

• LNB Type: Quattro
• Input Frequency Range Low Band: 10.7 - 11.7 GHz
• Input Frequency Range High Band: 11.7 - 12.75 GHz
• Output Frequency Range Low Band: 950 - 1950 MHz
• Output Frequency Range High Band: 1100 - 2150 MHz
• Local Oscillator Frequency Low Band: 9.75 GHz
• Local Oscillator Frequency High Band: 10.6 GHz
• Noise Figure: 0.1 dB (typical)
• Conversion Gain: 50 - 60 dB
• Output Ports: 4 (VH, VL, HH, HL)
• Output Connector Type: F-type
• Feed Horn Diameter: 40 mm
• Cross Polarization Isolation: >20 dB
• Current Consumption: Max. 180 mA
• Supply Voltage Vertical: 11.5 - 14 V
• Supply Voltage Horizontal: 16 - 19 V
• Operating Temperature: -30 to +60 °C

Recommendations

For optimal performance, pair this Quattro LNB with a compatible multiswitch and use high-quality coaxial cables. Ensure proper grounding and weatherproofing of connections.
