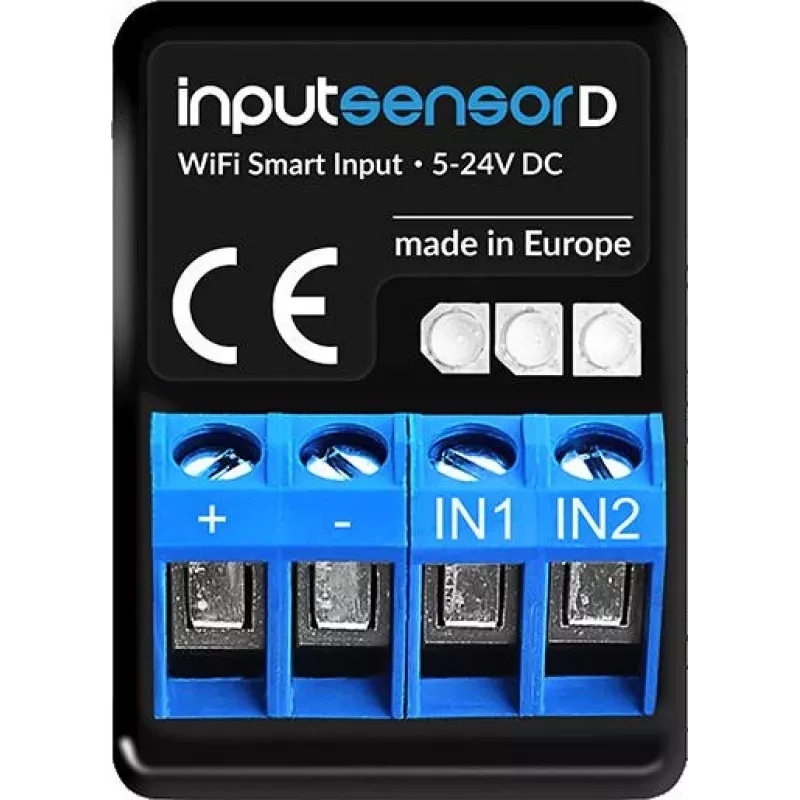

Module capteur numérique 2 entrées Blebox inputSensorD WiFi

The Blebox inputSensorD is a compact WiFi module designed to connect two potential-free digital inputs (e.g., reed switches, push buttons, PIR sensors) to your smart home network. It enables remote monitoring and automation via the BleBox wBox app, web interface, or REST API. Ideal for detecting door/window status, motion, water leaks, or temperature (with external tempSensor).

Advantages

Easy flush-mount installation, low power consumption (<1W), and reliable 2.4 GHz WiFi connectivity. Supports WPA/WPA2 security and works with 12-24V AC/DC power supply.

Suitable for

• Smart home automation systems
• Security and alarm applications
• Industrial sensor monitoring
• DIY IoT projects

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Inputs: 2 digital, potential-free
• Power: 12-24V AC/DC, <1W
• Operating temperature: -20°C to 50°C
• Protection: IP20
• Mounting: Flush-mount / in-wall box
• Control: BleBox wBox App, Web UI, REST API
• Certifications: CE, RoHS

Recommendations

Use with compatible sensors (reed switches, PIR, flood sensors) and a stable 2.4 GHz WiFi network. For outdoor use, install in a weatherproof enclosure.
