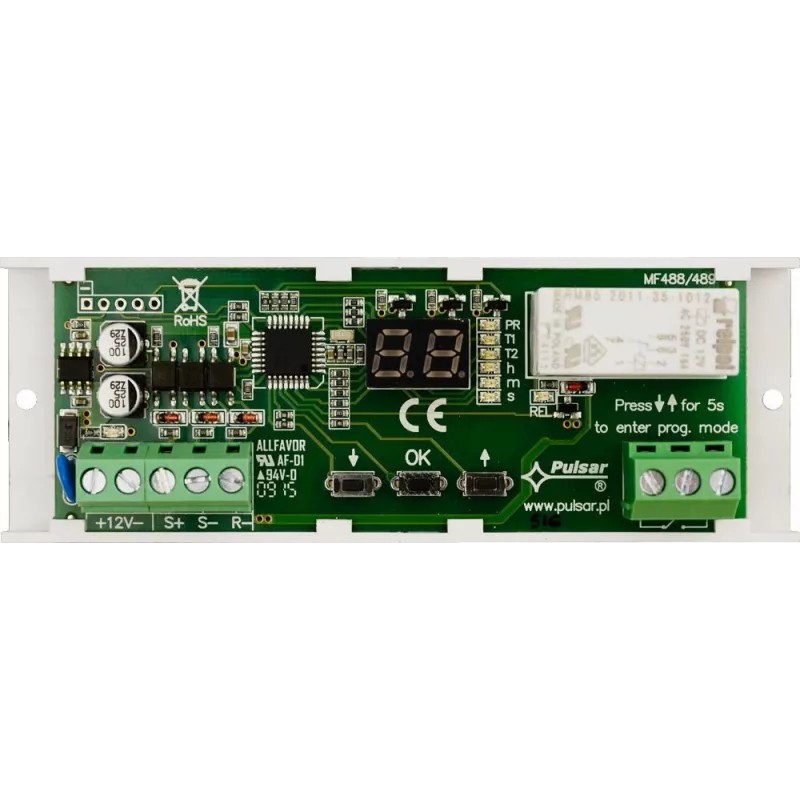

PULSAR AWZ516 module relais temporisé

The PULSAR AWZ516 is a versatile time relay module designed for precise timing control in access control, alarm systems, and automation applications. With a wide adjustment range from 1 second to 9999 seconds and five operating modes, it offers flexible configuration for various timing needs. The module features a 4-digit LED display and three push buttons for easy programming, along with a potential-free trigger input supporting both NO and NC contacts.

Advantages

Wide time adjustment range (1-9999 seconds) for diverse applications. Five operating modes provide flexibility for different timing sequences. Compact design with screw terminals and PCB mountable options for easy integration. Robust protection features including reverse polarity and short circuit protection ensure reliable operation.

Suitable for

• Access control systems
• Alarm systems
• Industrial automation
• Time delay applications

Key specifications

• Power Supply: 10-16V DC / 10-14V AC
• Current Consumption: 25 mA standby, 50 mA relay active
• Relay Output: 1x NO/NC potential-free contact, rated 1A @ 30V DC / 0.5A @ 50V AC
• Time Adjustment: 1 to 9999 seconds
• Operating Modes: 5
• Trigger Input: Potential-free contact (NO/NC)
• Display: 4-digit LED
• Control: 3 push buttons
• Indicators: Power LED, Relay Status LED
• Protection: Reverse polarity, Short circuit (output)
• Operating Temperature: -10°C to +50°C
• Mounting: Screw terminals, PCB mountable

Recommendations

For optimal performance, ensure the power supply voltage is within the specified range and the trigger input is properly configured. The module is ideal for applications requiring precise timing control with simple programming.
