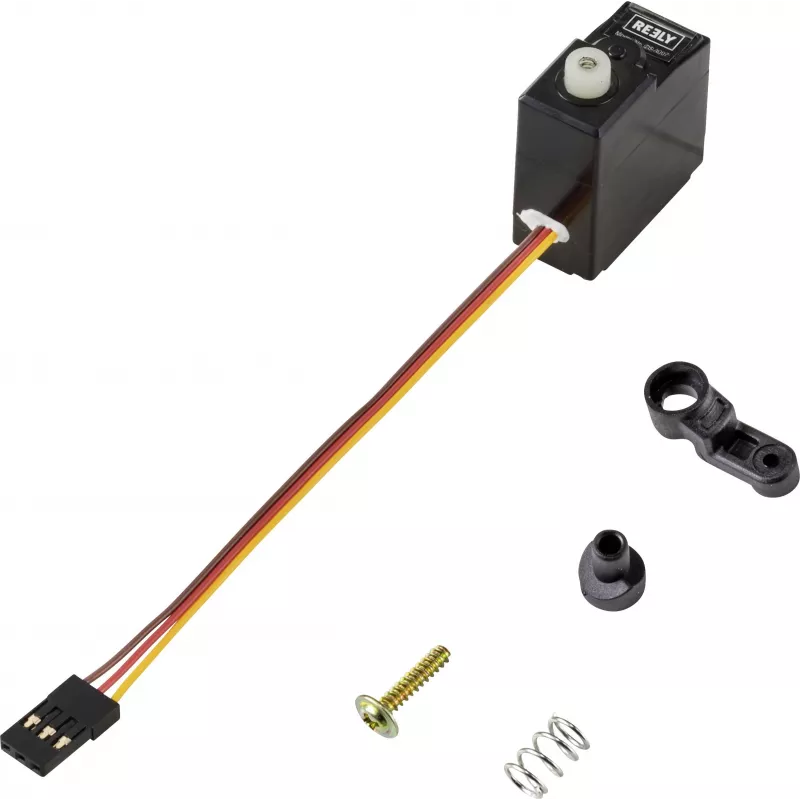

Reely RE-9407004 Servo de rechange

When a servo fails in your RC model, the vehicle becomes unresponsive and impossible to control. The Reely RE-9407004 Replacement Servo restores steering or throttle function with a standard-size analog servo that fits most RC cars, boats, and aircraft.

Who is it for

RC hobbyists who need a direct replacement for a worn or damaged standard servo. Ideal for models that use a 25T spline and JR/Graupner-compatible connector.

Main features

• Analog control system for simple, reliable operation
• Operating voltage range 4.8–6.0 V DC
• Stall torque: 3.2 kg/cm at 4.8 V, 4.1 kg/cm at 6.0 V
• Operating speed: 0.23 sec/60° at 4.8 V, 0.19 sec/60° at 6.0 V
• Plastic gears and bushing bearing for lightweight durability
• Brushed motor with 25T output shaft (Futaba compatible)
• JR/Graupner compatible connector, 300 mm cable

Specifications

• Servo Type: Standard
• Control System: Analog
• Operating Voltage: 4.8–6.0 V DC
• Stall Torque (4.8V): 3.2 kg/cm (31.4 Ncm)
• Stall Torque (6.0V): 4.1 kg/cm (40.2 Ncm)
• Operating Speed (4.8V): 0.23 sec/60°
• Operating Speed (6.0V): 0.19 sec/60°
• Gear Material: Plastic
• Bearing Type: Bushing
• Motor Type: Brushed
• Output Shaft Spline: 25T (Futaba compatible)
• Connector Type: JR/Graupner compatible
• Cable Length: Approx. 300 mm
• Application: RC Cars, Boats, Aircraft (Standard)
• Housing Material: Plastic

Tips

Check your model's servo dimensions and spline count before ordering. This servo uses a standard 25T spline, common on many RC models.
