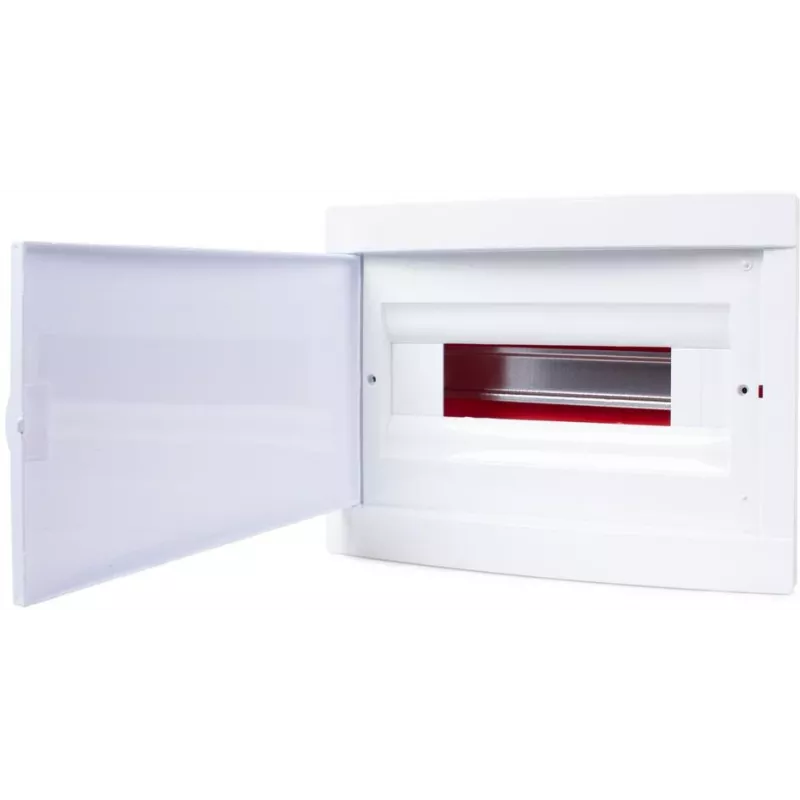

Tableau de distribution encastré ADELID RM-PT-12P 12 modules

The ADELID RM-PT-12P is a high-quality flush-mounted distribution board designed for indoor electrical installations. With a capacity of 12 modules in a single row, it provides a compact and organized solution for housing circuit breakers, RCDs, and other modular devices. The enclosure is made of durable ABS plastic with a transparent smoked door, allowing easy inspection while maintaining a sleek appearance.

Advantages

This distribution board offers easy installation and maintenance thanks to its flush-mount design and included DIN rail. The transparent door provides quick visual access to the status of installed devices without opening. The IP40 protection degree ensures protection against solid objects larger than 1 mm, making it suitable for indoor use.

Suitable for

• Residential and commercial electrical distribution systems
• Indoor flush-mounted installations
• Housing up to 12 modular devices (MCBs, RCCBs, etc.)

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Number of Modules: 12
• Number of Rows: 1
• Enclosure Material: ABS Plastic
• Door Type: Transparent, Smoked
• Protection Degree: IP40
• Colour: White
• Rated Insulation Voltage (Ui): 500V
• Rated Current (In): 63A
• Glow-wire Test Temperature: 650°C
• Operating Temperature Range: -5°C to +40°C
• Included DIN Rail: Yes

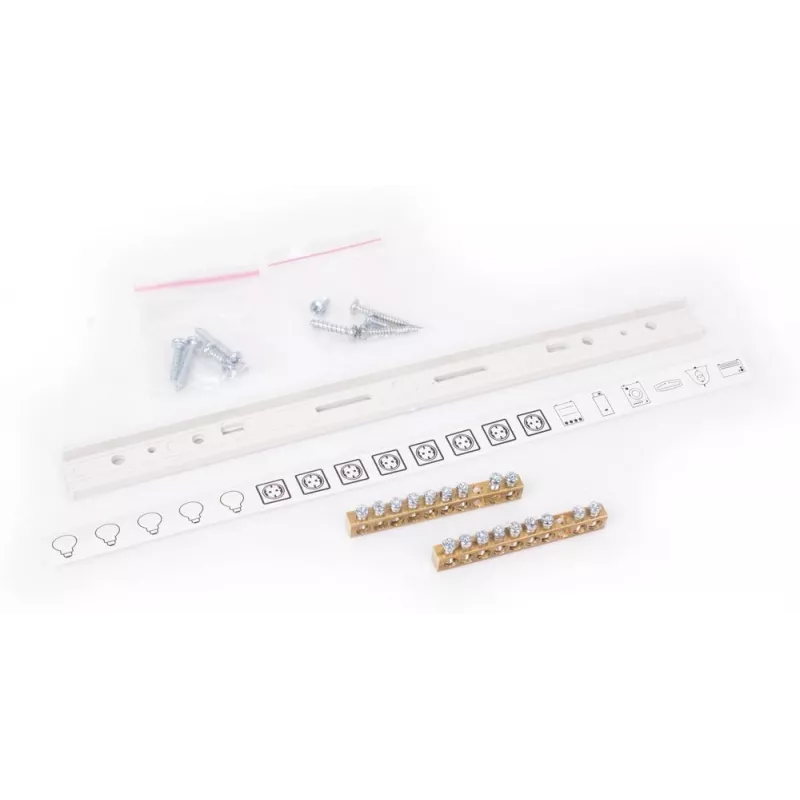

• Included Terminal Blocks: N+PE (Neutral and Protective Earth)
• Standards Compliance: PN-EN 60670-24, PN-EN 62208
• Recess Dimensions (H x W x D): 250 x 190 x 80 mm

Recommendations

For optimal performance, ensure that the recess opening matches the specified dimensions. Use appropriate cable glands for cable entry. This product should be installed by a qualified electrician in accordance with local regulations.
