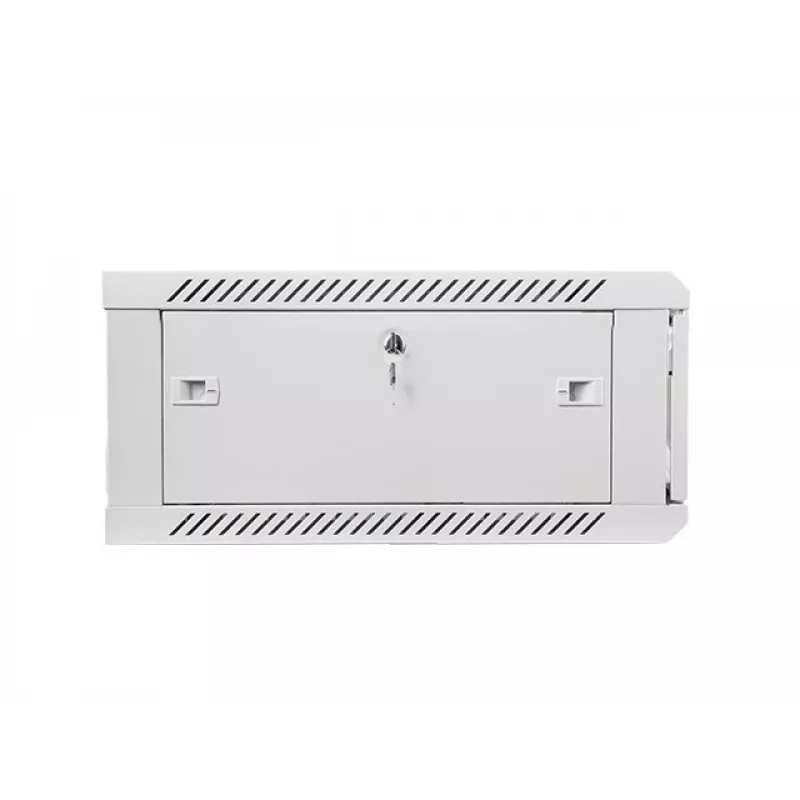

Rack mural Lanberg WF01-6604-10S

Wall mounted rack Lanberg WF01-6604-10S is a 19" single-section cabinet designed for installation of cabling and equipment in environments where space is limited. The 4U cabinet is made of high-grade cold rolled steel, has a depth of 600 mm and a maximum load capacity of 60 kg. It features an IP20 protection rating, a front door that can rotate 180° and lock, removable side panels and dedicated cable entry panels on the top and bottom. The flat-pack design allows simple self-assembly and easier transport.

Advantages

The Lanberg WF01-6604-10S provides a compact 4U 19" mounting space with a keyed front lock for secure access and IP20 protection against solid objects. Removable side panels and included M6 cage nuts, rail mounts and blank entry panels simplify installation and equipment mounting. Its steel construction ensures stable support for up to 60 kg while the fold-out front door and cable entry points make wiring and maintenance straightforward.

Suitable for

• Small and medium business network cabinets and server closets
• CCTV and IP surveillance equipment
• Low-voltage systems: cable TV, alarm, fire protection and access control
• Wall-mounted network switches, patch panels and small servers

Key specifications

• Rack size: 19" single section, 4U
• Depth: 600 mm
• Height: 285 mm
• Maximum load capacity: 60 kg
• Protection rating: IP20
• Material: cold rolled steel
• Colour: Grey
• Front door: opens and rotates up to 180° with lock

How to use

Unpack the flat-pack cabinet and assemble the main structure following the included instructions. Mount the rack to a suitable, load-bearing wall using appropriate fixings (not included). Install the supplied M6 cage nuts and rail mounts to configure 19" equipment positions, route cables through the top and bottom cable entry panels, place devices such as switches, patch panels or small servers into the 4U space, and secure the front door with the key lock.

Recommendations

Ensure the mounting surface supports the cabinet and the combined equipment weight (up to 60 kg). Maintain proper ventilation around active equipment, avoid exposure to moisture since the cabinet has IP20 protection only, and use suitable wall anchors and screws for safe installation.
